Hongye Steel's products cover various specifications of steel, steel plates, steel pipes, etc., which are widely used in construction, machinery, automobiles, ships, petrochemicals and other fields. The company always adheres to the principle of quality first and customer first, and has won the trust and support of our customers with high-quality products and services.

‹

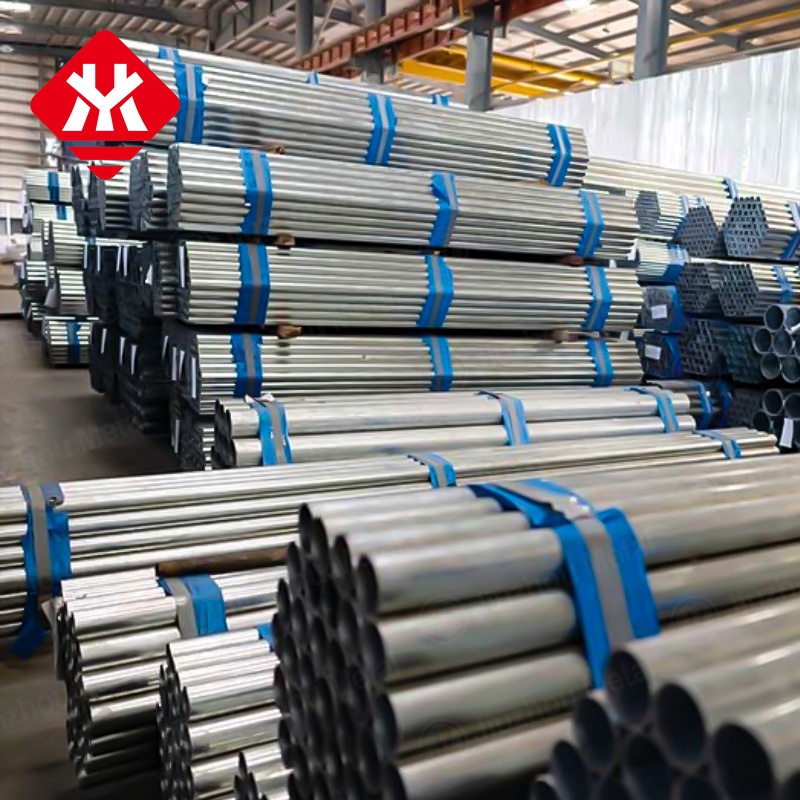

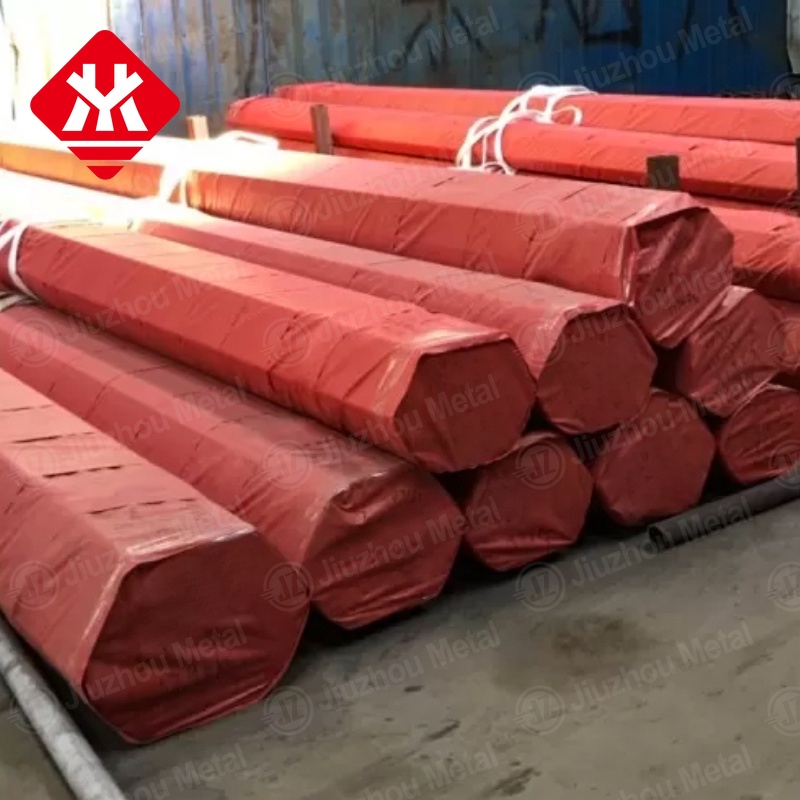

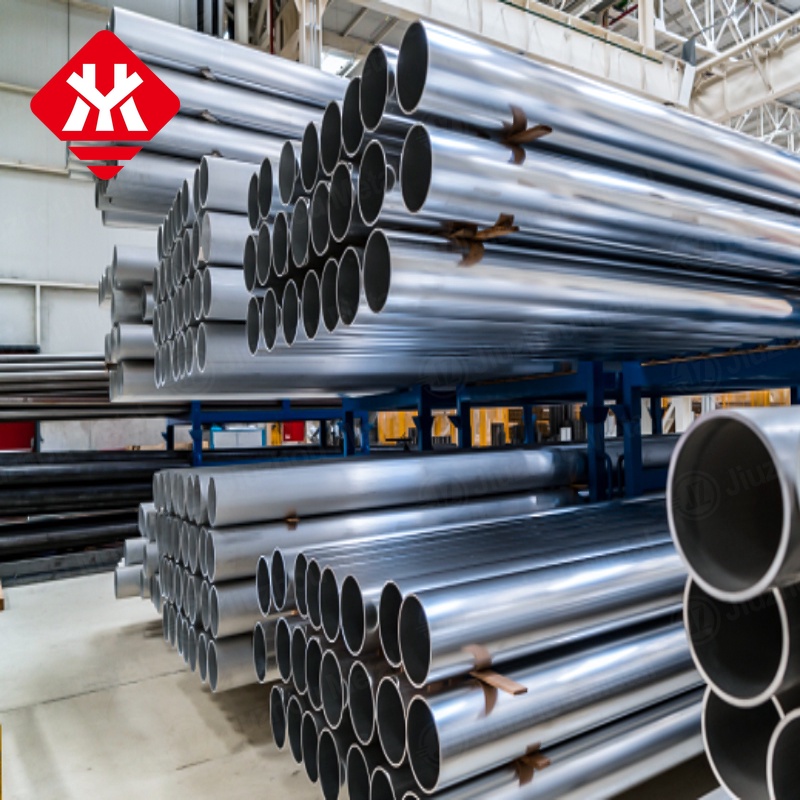

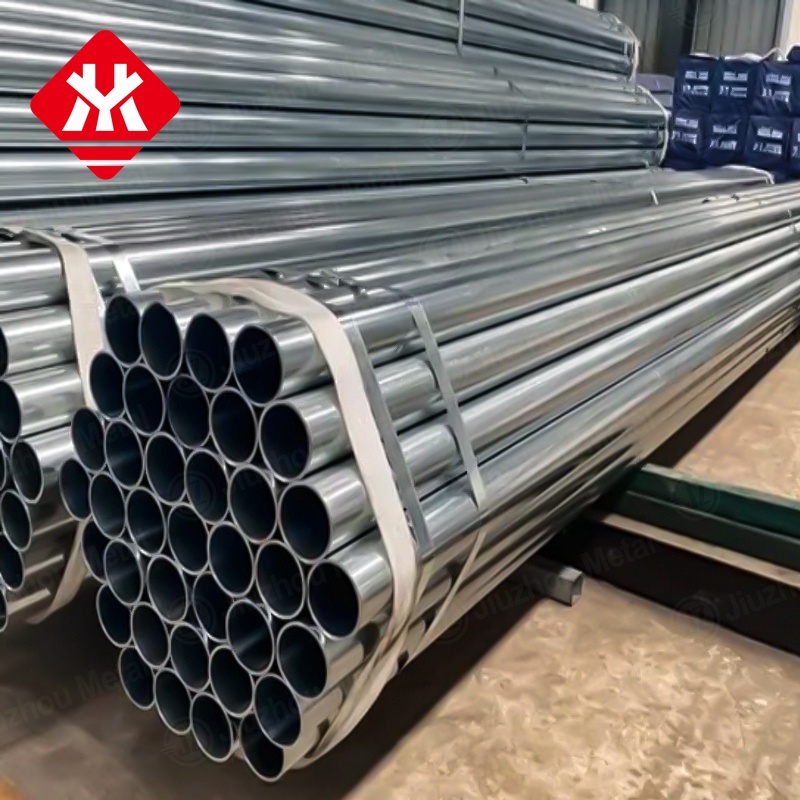

1100 Aluminum Pipe

›

‹

  • 1100 Aluminum Pipe
  • 1100 Aluminum Pipe
  • 1100 Aluminum Pipe
  • 1100 Aluminum Pipe
  • 1100 Aluminum Pipe

›

1100 Aluminum Pipe
1100 aluminum pipes have relatively low strength aside from excellent ductility, formability, weldability and corrosion resistance. Anodization can further improve its corrosion resistance, aside from obtaining a beautiful surface. But it cannot be strengthened by heat treatment.
Email : admin@hysteelcn.com
Whatsapp : +86 15318856561
Whatsapp : +86 13370974029
Whatsapp : +86 19953110798
Wechat : +86 15165828999
CONTACT US

Product Description

  • Commodity name: 1100 Aluminum Pipe

1100 Aluminum Pipe Description

1100 aluminum pipe has strong corrosion resistance and good plasticity. According to the different production process, there are cold-rolled pipe, hot-rolled pipe, stretched pipe and so on . The strength of 1100 is slightly higher than that of 1060, so it is suitable for products with high strength requirements. However, since the aluminum content is not as high as that of 1060 aluminum pipe, it is not recommended to use 1100 aluminum pipe products in the heat dissipation and electrical conductivity industries. 1100 aluminum pipe has good machining performance but lower cost. Therefore, 1100 aluminum pipes have seen a gradual increase in usage in recent years.


Product Parameters

Wall Thickness

0.4-20mm or customized

Length

5-2000mm or customized

Outer Diameter

10-2500mm or customized

Certificate

ISO, SGS, BV

Standard

JIS, AISI, ASTM, GB, DIN, EN, etc.

Brand

1000 Series: 1050 1060 1070 1100 1200 1235 etc.

3000 Series: 3003 3004 3005 3104 3105 3A21 etc.

5000 Series: 5005 5052 5083 5086 5154 5182 5251 5754 5A05 etc.

6000 Series: 6061 6063 6082 6A02 etc.

7000 Series: 7050 7475 7075 etc.

8000 Series: 8A06 8011 8090 etc.

Surface

Coating, Embossing, Drawing, Polishing, Anodizing, etc.

OEM Service

Punching, Cutting special size, Making flat surface, Surface treatment, etc.

Delivery Time

Received 30% after deposit 7-15 working days

Application

Construction, Shipbuilding, Decoration, Industry, Manufacturing, Machinery, Hardware and other fields

Sample

Free Offers Sample

Packaging

Strapping, Plastic bag, Film, Wooden pallet Standard seaworthy export packing or according to customer requirement



Chemical Composition

Alloy

Si

Fe

Cu

Mn

Mg

Cr

Zn

Ti

Others:

Each

Others:

Total

Al: Min.

1050

0.25

0.40

0.05

0.05

0.05

-

0.05

0.03

0.03

-

99.50

1060

0.25

0.35

0.05

0.03

0.03

-

0.05

0.03

0.03

-

99.60

1070

0.20

0.25

0.04

0.03

0.03

-

0.04

0.03

0.05

-

99.70

1100

0.95 Si Fee

0.05~0.20

0.05

-

-

0.1

-

0.05

0.15

99.0

2014

0.5~1.2

0.7

3.9~5.0

0.4~1.2

0.2~0.8

0.10

0.25

0.15

0.05

0.15

Allowance

2017

0.2~0.8

0.7

3.5~4.5

0.4~1.0

0.4~0.8

0.10

0.25

0.15

0.05

0.15

91.5 - 95.5

2024

0.50

0.50

3.8~4.9

0.3~0.9

1.2~1.8

0.10

0.25

0.15

0.05

0.15

Allowance

3003

0.60

0.70

0.05~0.20

1.0~1.5

-

-

0.10

-

0.05

0.15

Allowance

3A21

0.60

0.70

0.20

1.0-1.6

0.05

-

0.15

0.1-0.2

-

-

Allowance

3004

0.30

0.70

0.25

1.0~1.5

0.8~1.3

-

0.25

-

0.05

0.15

Allowance

3005

0.60

0.70

0.30

1.0~1.5

0.2~0.6

0.10

0.25

0.10

0.05

0.15

Allowance

3105

0.60

0.70

0.30

0.3~0.8

0.2~0.8

0.20

0.40

0.10

0.05

0.15

Allowance

5005

0.30

0.70

0.20

0.20

0.5~1.1

0.1

0.25

-

0.05

0.15

Allowance

5052

0.25

0.40

0.10

0.10

2.2~2.8

0.15~0.35

0.10

-

0.05

0.15

Allowance

5754

0.40

0.40

0.10

0.50

2.6~3.6

0.30

0.20

0.15

0.05

0.15

Allowance

5A05

0.50

0.50

0.10

0.3-0.6

4.8-5.5

-

0.20

-

0.05

0.05

Allowance

5083

0.40

0.40

0.10

0.4~1.0

4.0~4.9

0.05~0.25

0.25

0.15

0.05

0.15

Allowance

6061

0.40~0.8

0.70

0.15~0.4

0.15

0.8~1.2

0.04~0.35

0.25

0.15

0.05

0.15

Allowance

6082

0.70~1.3

0.50

0.10

0.4~1.0

0.6~1.2

0.25

0.20

0.10

0.05

0.15

Allowance

7075

0.40

0.50

1.2~2.0

0.30

2.1~2.9

0.18~0.28

5.1~6.1

0.20

0.05

0.15

Allowance



Mechanical Properties

Tensile Strength

 (MPa)

Yield Strength

(MPa)

Hardness

HB

Elongation Rate

（%）

89.6

34

23

15-28



Physical Performance

Density

Melting Point

Modulus of Elasticity

Thermal Conductivity

2.71 Kg/m³

643-675.2 °C

68.9 GPa

222 W/m.K



Annealing State

Brand

Annealing State

1xxx: 1050, 1050A, 1060, 1100

O, H12, H14, H16, H18, H22, H24, H26, H28, H111

3xxx: 3003, 3004, 3005, 3105

5xxx: 5005, 5052, 5754, 5083, 5086, 5182, 5049, 5251, 5454

O, H22, H24, H26, H28, H32, H34, H36, H38, H111

6xxx: 6061, 6082

T4, T6, T451, T651

2xxx: 2024

T3, T351, T4

7xxx: 7075

T6, T651



Scope of Application

Aluminum Uses And Application Area

Food Packaging

Beverage can ends, cans, bottle caps, etc.

Building

Curtain walls, cladding, suspended ceilings, thermal insulation, venetian blinds, etc.

Transportation

Auto parts, passenger car bodies, aviation ships and air cargo containers.

Electronic Equipment

Electrical appliances, communication equipment,PCPlate drilling guide, lighting and heat dissipation materials, etc.

Consumer Goods

Umbrellas, cooking utensils, sports equipment, etc

Other

Military, color coated aluminum plate
